Shower trays Elit Premium 360 series

Directory > Shower ladders

Shower trays Elit Premium 360 series

The grate, flange and ladder body are made of AISI 304 stainless steel, and the legs and the rotary siphon are made of polypropylene.

from 3 417
uah

x
шт.
=
from 3 417 uah

ОФОРМИТЬ ЗАКАЗ

Введите свои данные

  1. Shower trays Elit Premium 360 series
  2. Shower ladders
  3. Directory

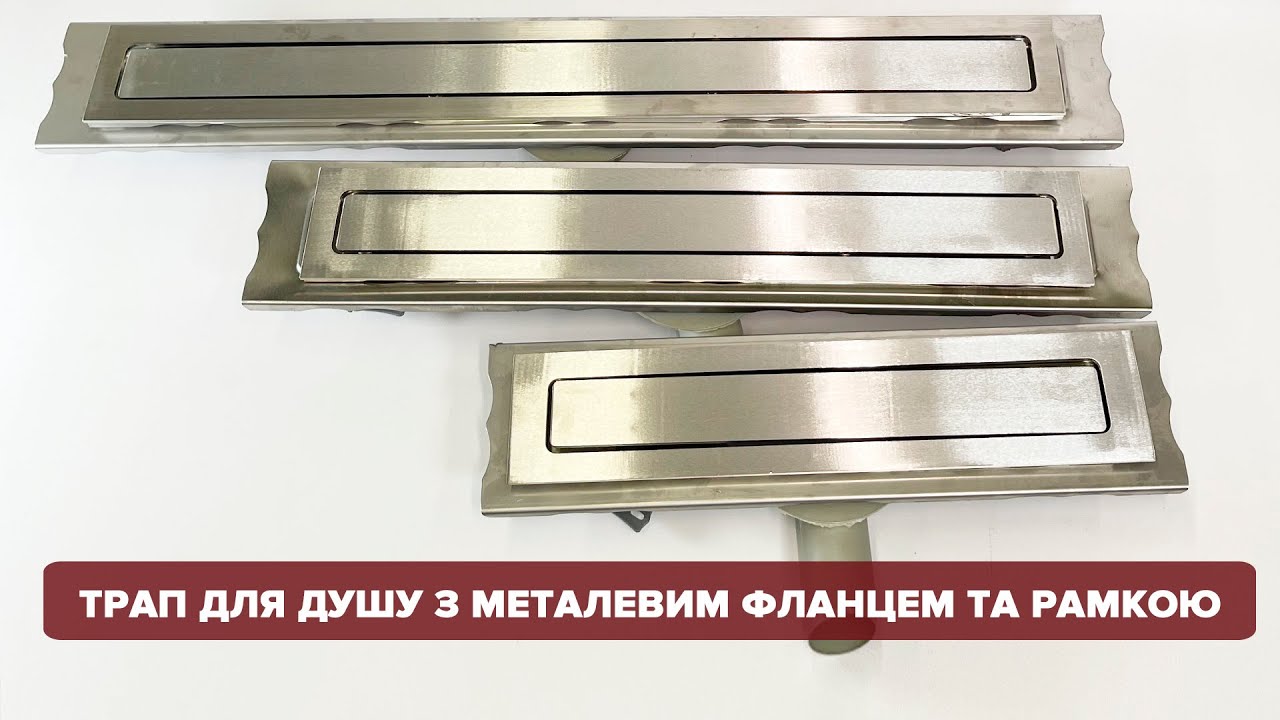

Shower channels of the Elite Legal series (code 4045.360) are a stylish modern solution with convenient connection thanks to a rotary siphon.

The complete set of the shower channel:

  • Housing (with 360° swivel siphon and horizontal flange)
  • Legs
  • Shutter (double hydraulic lock)
  • Grid (supplied in a protective p/e film)

* The product is packed in a cardboard box

The grating, the flange around it and the housing are made of AISI 304 stainless steel. The thickness of the grating steel is 1.5 mm. The rotary siphon, legs and shutter are made of durable ABS plastic. This plastic is resistant to temperatures (operating mode from -30 to 75 °C). The siphon in this model rotates 360°, which allows you to connect it even to the most inaccessible sewer system. The connection is horizontal with an outlet to the DN50 pipe.  The carrying capacity of the ladder is 19.5 l/min, taking into account the width of the grate drain 4 mm.

The installation height is adjusted by adjusting the tray legs. If after installation you found that the grid is just above or below the tile level - it's easy to fix! Turn the grate over with the inside side, there are washers on the left and right to adjust the height. Adjust it to the height of your tile and install the grate in place. Inside the gutter there is a double water lock, which will protect the room from unpleasant sewer odors.

Tray length: 45, 60, 80 cm (33 cm on request)
Article number: 4045.360
Throughput capacity: 32 l/min
Connection: 360 swivel siphon on a 50mm pipe
Manufacturer: Turkey
Packaging: cardboard box


1 - AISI 304 stainless steel housing

2 - PP legs
3 - double hydraulic lock made of ABS plastic
4 -AISI 304 stainless steel stretcher
5 - stainless steel grating
6 - swivel 360 siphon made of ABS plastic
