Stainless Steel overhead ladder Dream
Emergency ladder made of AISI 304 stainless steel .
Overhead ladder of the Dream series (code 3158) It is a lattice plate made of AISI 304 stainless steel with a sealing rubber band.
Designed to drain water from the bathroom in the absence of the possibility of connecting a ladder with a siphon. It is easily mounted to the floor using mounting holes.
We offer different types of Dream series ladders:

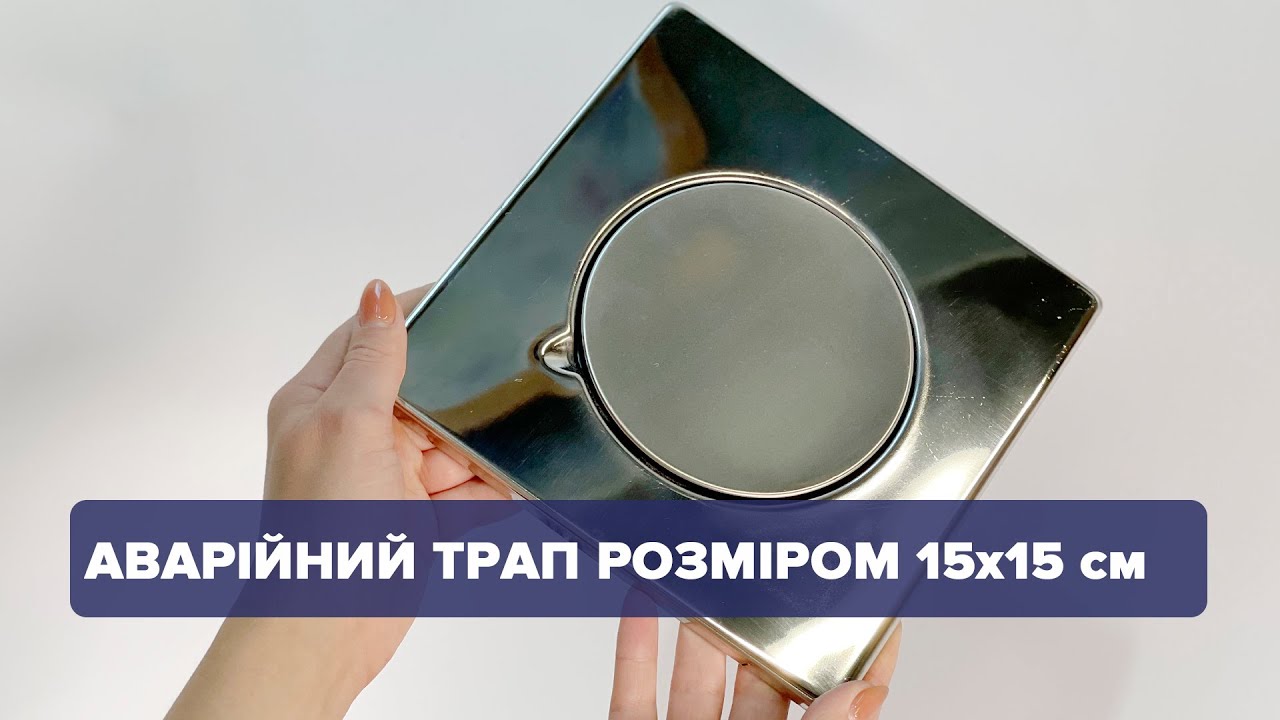

- 1515R0.120 - grid 15x15 cm, cover thickness 1.2 mm
- 1515R0.150 - grid 15x15 cm, cover thickness 1.5 mm
- 1515R1.120 - grid 15x15 cm, cover thickness 1.2 mm, base thickness 7.8 mm
- 1515R1.150 - grid 15x15 cm, cover thickness 1.5 mm, base thickness 7.8 mm

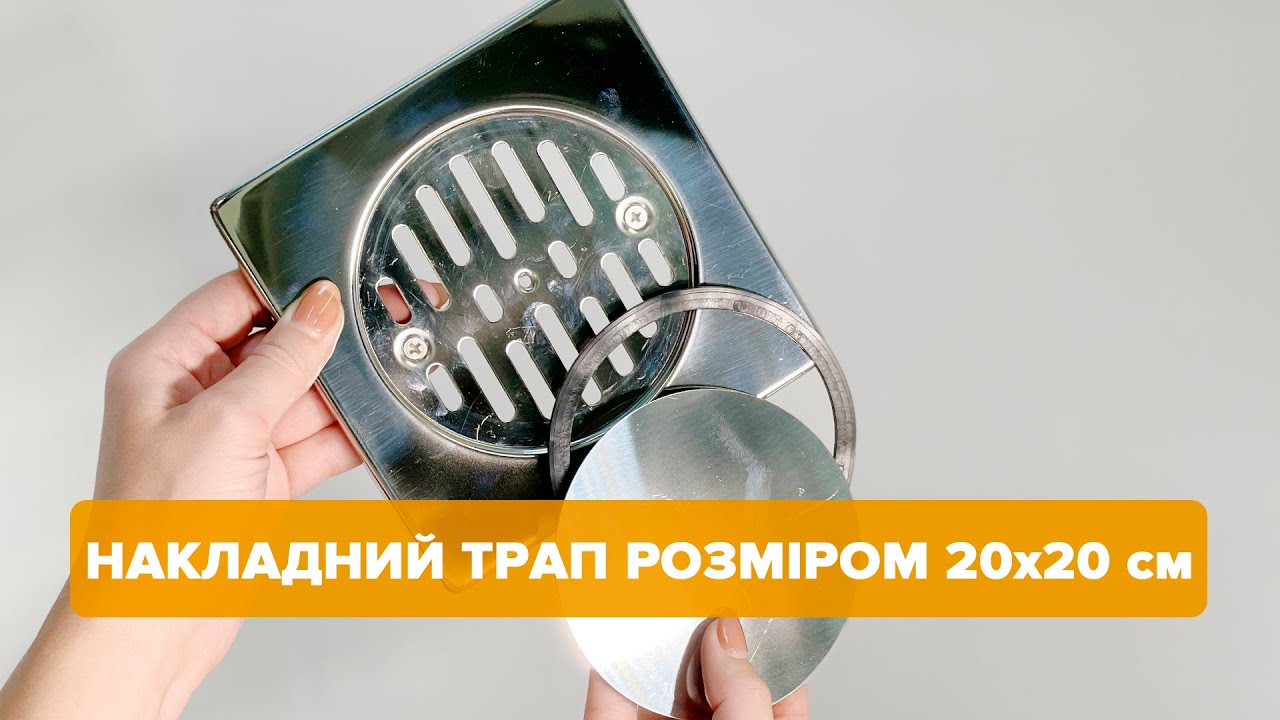

- 2020P0.150 - grid 20x20 cm, cover thickness 1.5 mm
- 2020P1.150 - grid 20x20 cm, cover thickness 1.5 mm, base thickness 7.8 mm
High resistance to organic and inorganic chemicals.
It is resistant to oxidation in most acidic and salty waters. Long-term use of high-density cleaning products is not recommended.
Grid size: 15x15cm or 20x20cm
Base thickness: 1.2mm; 1.5mm; 7.8mm
Drain diameter: 107 mm
Throughput capacity: 54 l/min
Compatible with different types of pipes
The presence of a shutter from the smell: no
1 - fasteners made of galvanized steel
2 - cap-plug made of AISI 304 stainless steel
3 - sealing rubber band made of TPE
4 - AISI 304 stainless steel housing
5 - additional grating with holes AISI 304
P0 - a flat base with a cover 1.2 or 1.5 mm thick
P1 - base thickness of 7.8mm (X)
